EH 2604
-
191.5kwEngine power
-
Electric drive, electric PTONew energy
-
CVT hybridIntelligent

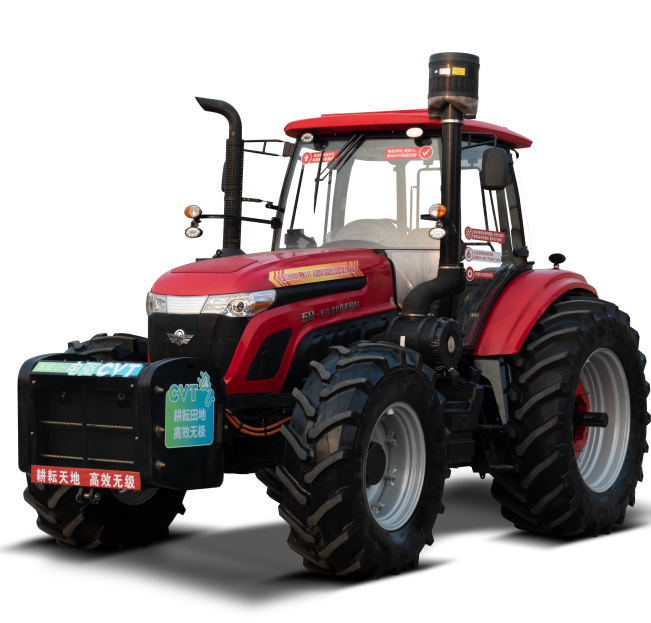

EH series tractors are high-end products developed by Wuzheng Group, which adopts the hybrid CVT transmission system and features hybrid energy-saving, excellent acceleration and start-up, convenient reversing gears, high cost performance, high transmission efficiency, high comprehensive operating efficiency, superb driving comfort, electric power output ports, etc. EH series tractors are high horsepower tractors that have been meticulously developed based on the leading technology within the industry and are capable of satisfying your demands for a high power tractor.
-

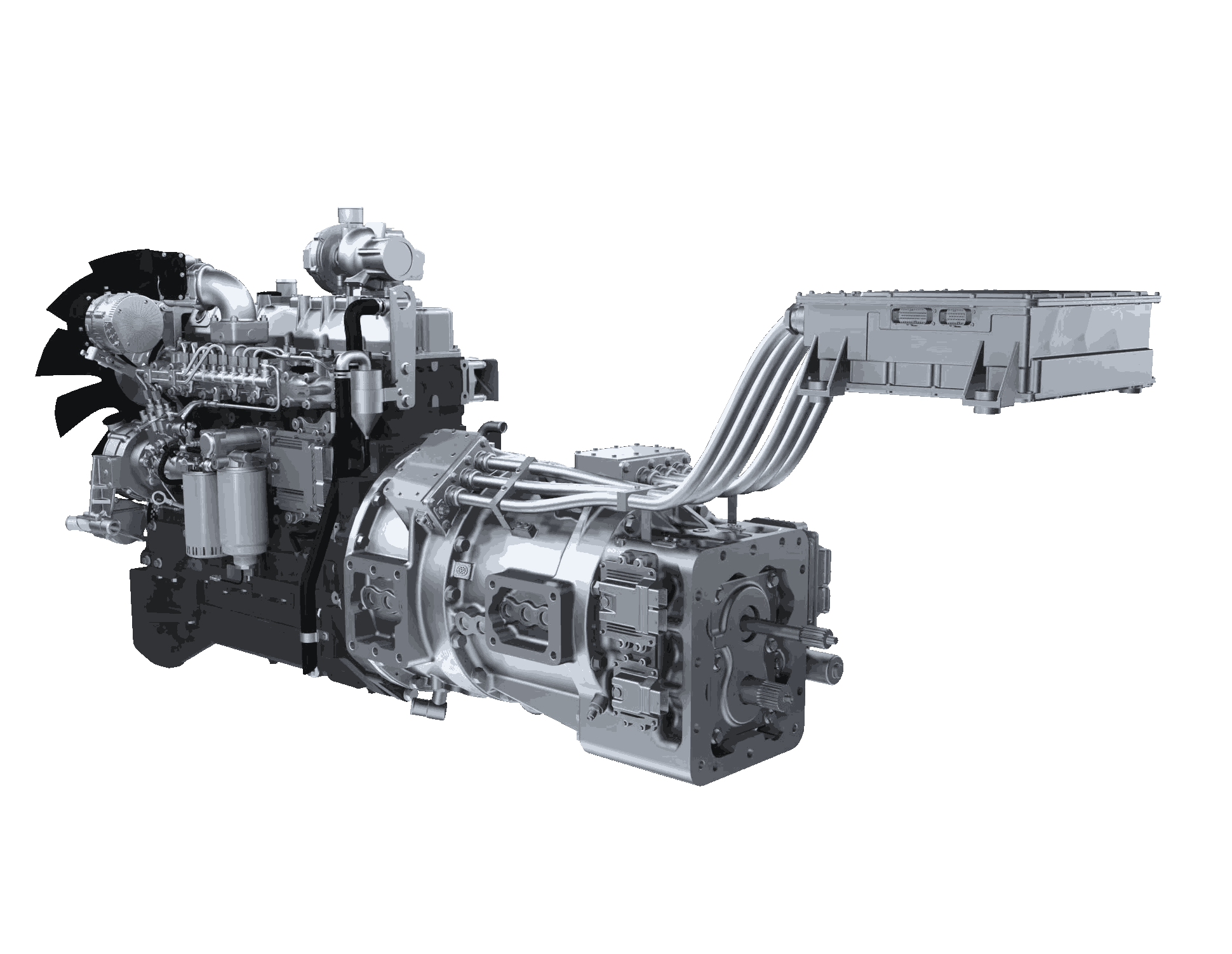

Electric drive CVT continuously variable transmission
The electric drive uses a one-piece design, with the main drive motor driving the travel. Features include compact structure, stepless speed change through motor speed regulation, simplified structure and layout of transmission system, and high transmission efficiency.
-
Convenient for Efficiency
Advanced electro-hydraulic control system, electronically controlled lifting, and wet PTO, providing higher operating quality and better maneuverability.
-
Comfortable driving and riding
Ergonomic Design：
360° all-around visibility with low noise for enhanced driving comfort.
Technical specification
| Item | Unit | Parameter |
| Machine model and name | / | EH2604、wheeled tractor |
| Entire machine external dimensions (L×W×H) | mm | 5900×2450×3300(top of air filter) |
| Wheelbase or ground contact length of tracks | mm | 3035 |
| Wheeltrack (front/rear) | mm | 1935、2025、2250/1860～2200 |
| Minimum ground clearance | mm | 520(bottom of lower tie rod holder mount) |
| Minimum useable mass | kg | 8450 |
| Standard counterweight | front/rear | 1120/520 |
| Transmission | / | Two-gear zonal variable speed sliding sleeve shifting |
| Clutch | / | None |
| Rated engine power | kW | 191.2 |
| Rated engine speed | r/min | 1800 |
| Tire model | front/rear | Front wheel:540/65R30 Rear wheel:650/65R42 |
| Number of hydraulic output types | / | Three groups/four groups |
| Standard speed of power output shaft | r/min | 760/850 |
